在力扣刷二叉树相关题目时，输入一般都是完全层序遍历，我习惯在自己电脑上调试代码，因此才编写下面代码将完全层序遍历数据重建二叉树对象。
生成的结果二叉树一般也只会给出完全层序遍历，无法直观的感受二叉树实际情况，因此我编写代码将二叉树对象生成svg图片，刷二叉树相关题目更清晰直观了。

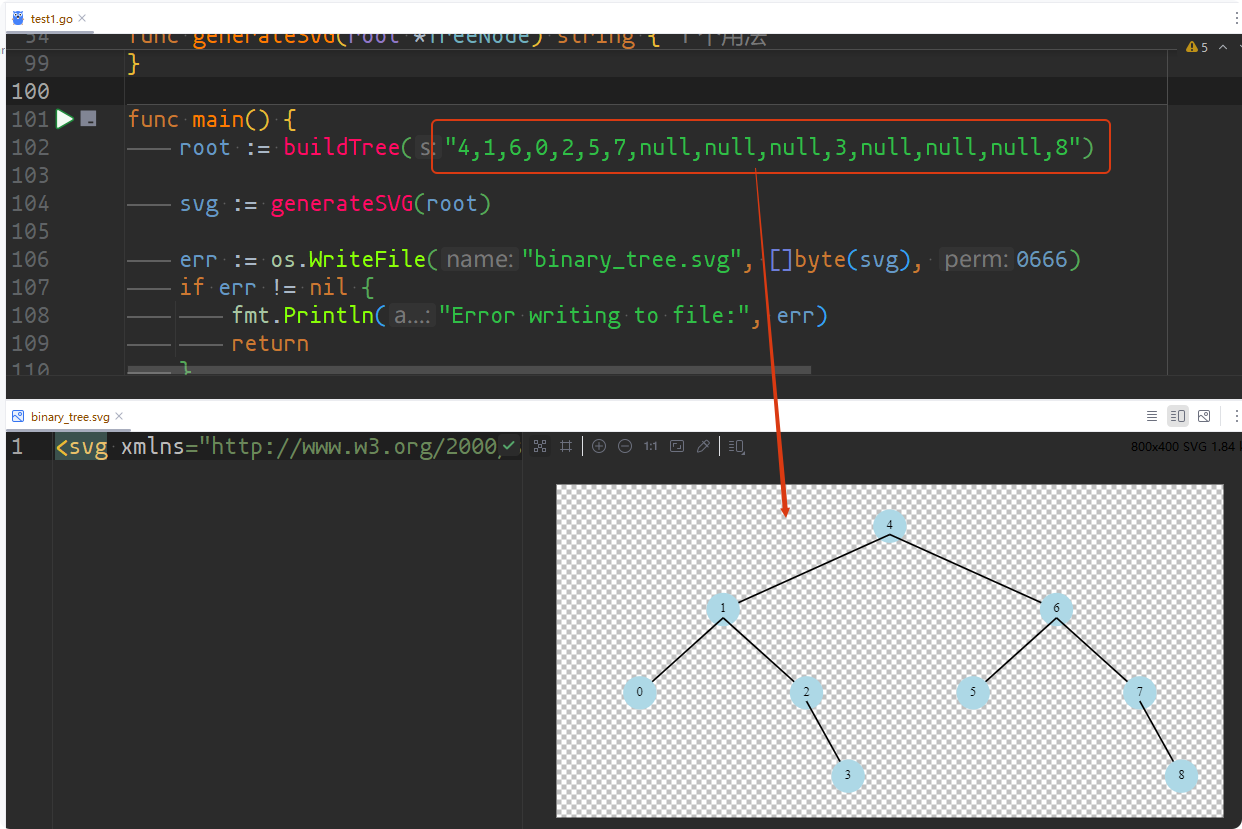

力扣原题：https://leetcode.cn/problems/w6cpku/ ，效果图如下：
代码如下：

package main
import (
  "fmt"
  "math"
  "os"
  "strconv"
  "strings"
)
type TreeNode struct {
  Val   int
  Left  *TreeNode
  Right *TreeNode
}
// 根据完全层序遍历构建二叉树
func buildTree(s string) *TreeNode {
  nums := strings.Split(strings.ReplaceAll(s, " ", ""), ",")
  if len(nums) == 0 {
    return nil
  }
  n, err := strconv.Atoi(nums[0])
  if err != nil {
    return nil
  }
  var (
    root  = &TreeNode{Val: n}
    queue = []*TreeNode{root}
    i     = 1
  )
  for i < len(nums) {
    node := queue[0]
    queue = queue[1:]
    if n, err = strconv.Atoi(nums[i]); err == nil {
      node.Left = &TreeNode{Val: n}
      queue = append(queue, node.Left)
    }
    i++
    if i < len(nums) {
      if n, err = strconv.Atoi(nums[i]); err == nil {
        node.Right = &TreeNode{Val: n}
        queue = append(queue, node.Right)
      }
    }
    i++
  }
  return root
}
// 生成完全层序遍历
func levelOrder(root *TreeNode) string {
  if root == nil {
    return ""
  }
  var (
    result strings.Builder
    queue  = []*TreeNode{root}
  )
  for len(queue) != 0 {
    node := queue[0]
    queue = queue[1:]
    if node == nil {
      result.WriteString("null,")
    } else {
      result.WriteString(strconv.Itoa(node.Val))
      result.WriteByte(',')
      queue = append(queue, node.Left)
      queue = append(queue, node.Right)
    }
  }
  return strings.TrimRightFunc(result.String(), func(r rune) bool {
    return r == 'n' || r == 'u' || r == 'l' || r == ','
  })
}
// 生成二叉树的SVG图片
func generateSVG(root *TreeNode) string {
  var treeHeight func(*TreeNode) int
  treeHeight = func(root *TreeNode) int {
    if root == nil {
      return 0
    }
    return max(treeHeight(root.Left), treeHeight(root.Right)) + 1
  }
  var (
    height = treeHeight(root)
    width  = int(math.Pow(2, float64(height))) * 50
    draw func(node *TreeNode, x, y, level int)
    svg = &strings.Builder{}
  )
  fmt.Fprintf(svg, `<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 %d %d">`, width, height*100)
  draw = func(node *TreeNode, x, y, level int) {
    if node == nil {
      return
    }
    nextLevel := level + 1
    offset := int(math.Pow(2, float64(height-nextLevel-1))) * 50
    if node.Left != nil {
      leftX := x - offset
      leftY := y + 100
      fmt.Fprintf(svg, `<line x1="%d" y1="%d" x2="%d" y2="%d" stroke="black" stroke-width="2" />`, x, y, leftX, leftY)
      draw(node.Left, leftX, leftY, nextLevel)
    }
    if node.Right != nil {
      rightX := x + offset
      rightY := y + 100
      fmt.Fprintf(svg, `<line x1="%d" y1="%d" x2="%d" y2="%d" stroke="black" stroke-width="2" />`, x, y, rightX, rightY)
      draw(node.Right, rightX, rightY, nextLevel)
    }
    fmt.Fprintf(svg, `<circle cx="%d" cy="%d" r="20" fill="lightblue" />`, x, y)
    fmt.Fprintf(svg, `<text x="%d" y="%d" text-anchor="middle" dominant-baseline="middle">%d</text>`, x, y, node.Val)
  }
  draw(root, width/2, 50, 0)
  svg.WriteString(`</svg>`)
  return svg.String()
}
func main() {
  root := buildTree("4,1,6,0,2,5,7,null,null,null,3,null,null,null,8")
  svg := generateSVG(root)
  err := os.WriteFile("binary_tree.svg", []byte(svg), 0666)
  if err != nil {
    fmt.Println("Error writing to file:", err)
    return
  }
  fmt.Println("SVG file created successfully!")
}
