.NET服务发现(Microsoft.Extensions.ServiceDiscovery)集成Consul-牛翰网

随着Aspire发布preview5的发布,Microsoft.Extensions.ServiceDiscovery随之更新,

服务注册发现这个属于老掉牙的话题解决什么问题就不赘述了,这里主要讲讲Microsoft.Extensions.ServiceDiscovery(preview5)以及如何扩展其他的中间件的发现集成 .

Microsoft.Extensions.ServiceDiscovery官方默认提供的Config,DNS,YARP三种Provider,使用也比较简单 :


builder.Services.AddServiceDiscovery();
builder.Services.AddHttpClient<CatalogServiceClient>(static client =>
    {
        client.BaseAddress = new("http://todo");
    });
builder.Services.ConfigureHttpClientDefaults(static http =>
{
    // 全局对HttpClient启用服务发现
    http.UseServiceDiscovery();
});
builder.Services.AddServiceDiscovery();

builder.Services.AddHttpClient<CatalogServiceClient>(static client =>
    {
        client.BaseAddress = new("http://todo");
    });

builder.Services.ConfigureHttpClientDefaults(static http =>
{
    // 全局对HttpClient启用服务发现
    http.UseServiceDiscovery();
});
builder.Services.AddServiceDiscovery();

builder.Services.AddHttpClient<CatalogServiceClient>(static client =>
    {
        client.BaseAddress = new("http://todo");
    });

builder.Services.ConfigureHttpClientDefaults(static http =>
{
    // 全局对HttpClient启用服务发现
    http.UseServiceDiscovery();
});

然后 appsettings.json 为名为 todo 的服务配置终结点：


  "Services": {
    "todo": {
      "http": [
        "http://localhost:5124"
      ]
    }
  }
  "Services": {
    "todo": {
      "http": [
        "http://localhost:5124"
      ]
    }
  }
  "Services": {
    "todo": {
      "http": [
        "http://localhost:5124"
      ]
    }
  }

然后使用服务发现:


#region 模拟服务端的todo接口:
var sampleTodos = new Todo[] {
    new(1, "Walk the dog"),
    new(2, "Do the dishes", DateOnly.FromDateTime(DateTime.Now)),
    new(3, "Do the laundry", DateOnly.FromDateTime(DateTime.Now.AddDays(1))),
    new(4, "Clean the bathroom"),
    new(5, "Clean the car", DateOnly.FromDateTime(DateTime.Now.AddDays(2)))
};
var todosApi = app.MapGroup("/todos");
todosApi.MapGet("/", () => sampleTodos);
todosApi.MapGet("/{id}", (int id) =>
    sampleTodos.FirstOrDefault(a => a.Id == id) is { } todo
        ? Results.Ok(todo)
        : Results.NotFound());
#endregion
public record Todo(int Id, string? Title, DateOnly? DueBy = null, bool IsComplete = false);
[JsonSerializable(typeof(Todo[]))]
internal partial class AppJsonSerializerContext : JsonSerializerContext
{
}
#region 测试服务发现和负载
app.MapGet("/test", async (IHttpClientFactory clientFactory) =>
{
    //这里服务发现将自动解析配置文件中的服务
    var client = clientFactory.CreateClient("todo");
    var response = await client.GetAsync("/todos");
    var todos = await response.Content.ReadAsStringAsync();
    return Results.Content(todos, contentType: "application/json");
});
#endregion
#region 模拟服务端的todo接口:
var sampleTodos = new Todo[] {
    new(1, "Walk the dog"),
    new(2, "Do the dishes", DateOnly.FromDateTime(DateTime.Now)),
    new(3, "Do the laundry", DateOnly.FromDateTime(DateTime.Now.AddDays(1))),
    new(4, "Clean the bathroom"),
    new(5, "Clean the car", DateOnly.FromDateTime(DateTime.Now.AddDays(2)))
};

var todosApi = app.MapGroup("/todos");
todosApi.MapGet("/", () => sampleTodos);
todosApi.MapGet("/{id}", (int id) =>
    sampleTodos.FirstOrDefault(a => a.Id == id) is { } todo
        ? Results.Ok(todo)
        : Results.NotFound());
#endregion

public record Todo(int Id, string? Title, DateOnly? DueBy = null, bool IsComplete = false);

[JsonSerializable(typeof(Todo[]))]
internal partial class AppJsonSerializerContext : JsonSerializerContext
{
}

#region 测试服务发现和负载

app.MapGet("/test", async (IHttpClientFactory clientFactory) =>
{
    //这里服务发现将自动解析配置文件中的服务
    var client = clientFactory.CreateClient("todo");
    var response = await client.GetAsync("/todos");
    var todos = await response.Content.ReadAsStringAsync();
    return Results.Content(todos, contentType: "application/json");
});

#endregion

#region 模拟服务端的todo接口:
var sampleTodos = new Todo[] {
    new(1, "Walk the dog"),
    new(2, "Do the dishes", DateOnly.FromDateTime(DateTime.Now)),
    new(3, "Do the laundry", DateOnly.FromDateTime(DateTime.Now.AddDays(1))),
    new(4, "Clean the bathroom"),
    new(5, "Clean the car", DateOnly.FromDateTime(DateTime.Now.AddDays(2)))
};

var todosApi = app.MapGroup("/todos");
todosApi.MapGet("/", () => sampleTodos);
todosApi.MapGet("/{id}", (int id) =>
    sampleTodos.FirstOrDefault(a => a.Id == id) is { } todo
        ? Results.Ok(todo)
        : Results.NotFound());
#endregion

public record Todo(int Id, string? Title, DateOnly? DueBy = null, bool IsComplete = false);

[JsonSerializable(typeof(Todo[]))]
internal partial class AppJsonSerializerContext : JsonSerializerContext
{
}

#region 测试服务发现和负载

app.MapGet("/test", async (IHttpClientFactory clientFactory) =>
{
    //这里服务发现将自动解析配置文件中的服务
    var client = clientFactory.CreateClient("todo");
    var response = await client.GetAsync("/todos");
    var todos = await response.Content.ReadAsStringAsync();
    return Results.Content(todos, contentType: "application/json");
});

#endregion

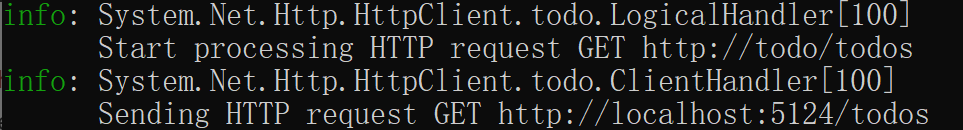

运行程序后将会发现成功执行:

当然对于这样写死配置的服务发现一点都不灵活,因此应运而生了 YARP和DNS这些Provider, 目前服务注册发现使用Consul的还是挺多的,当然还有很多其他的轮子就不赘述了,这里我们来扩展一个Consul的服务发现Provider :

实现核心接口IServiceEndPointProvider


internal class ConsulServiceEndPointProvider(ServiceEndPointQuery query, IConsulClient consulClient, ILogger logger)
        : IServiceEndPointProvider, IHostNameFeature
    {
        const string Name = "Consul";
        private readonly string _serviceName = query.ServiceName;
        private readonly IConsulClient _consulClient = consulClient;
        private readonly ILogger _logger = logger;
        public string HostName => query.ServiceName;
#pragma warning disable CA1816 // Dispose 方法应调用 SuppressFinalize
        public ValueTask DisposeAsync() => default;
        public async ValueTask PopulateAsync(IServiceEndPointBuilder endPoints, CancellationToken cancellationToken)
        {
            var flag = ServiceNameParts.TryParse(_serviceName, out var serviceNameParts);
            var sum = 0;
            if (flag)
            {
                var queryResult = await _consulClient.Health.Service(serviceNameParts.Host, string.Empty, true, cancellationToken);
                foreach (var serviceEntry in queryResult.Response)
                {
                    var address = $"{serviceEntry.Service.Address}:{serviceEntry.Service.Port}";
                    var isEndpoint = ServiceNameParts.TryCreateEndPoint(address, out var endPoint);
                    if (isEndpoint)
                    {
                        ++sum;
                        var serviceEndPoint = ServiceEndPoint.Create(endPoint!);
                        serviceEndPoint.Features.Set<IServiceEndPointProvider>(this);
                        serviceEndPoint.Features.Set<IHostNameFeature>(this);
                        endPoints.EndPoints.Add(serviceEndPoint);
                        _logger.LogInformation($"ConsulServiceEndPointProvider Found Service {_serviceName}:{address}");
                    }
                }
            }
            if (sum == 0)
            {
                _logger.LogWarning($"No ConsulServiceEndPointProvider were found for service '{_serviceName}' ('{HostName}').");
            }
        }
        /// <inheritdoc/>
        public override string ToString() => Name;
    }
internal class ConsulServiceEndPointProvider(ServiceEndPointQuery query, IConsulClient consulClient, ILogger logger)
        : IServiceEndPointProvider, IHostNameFeature
    {
        const string Name = "Consul";
        private readonly string _serviceName = query.ServiceName;
        private readonly IConsulClient _consulClient = consulClient;
        private readonly ILogger _logger = logger;

        public string HostName => query.ServiceName;

#pragma warning disable CA1816 // Dispose 方法应调用 SuppressFinalize
        public ValueTask DisposeAsync() => default;

        public async ValueTask PopulateAsync(IServiceEndPointBuilder endPoints, CancellationToken cancellationToken)
        {
            var flag = ServiceNameParts.TryParse(_serviceName, out var serviceNameParts);
            var sum = 0;
            if (flag)
            {
                var queryResult = await _consulClient.Health.Service(serviceNameParts.Host, string.Empty, true, cancellationToken);
                foreach (var serviceEntry in queryResult.Response)
                {
                    var address = $"{serviceEntry.Service.Address}:{serviceEntry.Service.Port}";
                    var isEndpoint = ServiceNameParts.TryCreateEndPoint(address, out var endPoint);
                    if (isEndpoint)
                    {
                        ++sum;
                        var serviceEndPoint = ServiceEndPoint.Create(endPoint!);
                        serviceEndPoint.Features.Set<IServiceEndPointProvider>(this);
                        serviceEndPoint.Features.Set<IHostNameFeature>(this);
                        endPoints.EndPoints.Add(serviceEndPoint);
                        _logger.LogInformation($"ConsulServiceEndPointProvider Found Service {_serviceName}:{address}");
                    }
                }
            }

            if (sum == 0)
            {
                _logger.LogWarning($"No ConsulServiceEndPointProvider were found for service '{_serviceName}' ('{HostName}').");
            }
        }

        /// <inheritdoc/>
        public override string ToString() => Name;
    }
internal class ConsulServiceEndPointProvider(ServiceEndPointQuery query, IConsulClient consulClient, ILogger logger)
        : IServiceEndPointProvider, IHostNameFeature
    {
        const string Name = "Consul";
        private readonly string _serviceName = query.ServiceName;
        private readonly IConsulClient _consulClient = consulClient;
        private readonly ILogger _logger = logger;

        public string HostName => query.ServiceName;

#pragma warning disable CA1816 // Dispose 方法应调用 SuppressFinalize
        public ValueTask DisposeAsync() => default;

        public async ValueTask PopulateAsync(IServiceEndPointBuilder endPoints, CancellationToken cancellationToken)
        {
            var flag = ServiceNameParts.TryParse(_serviceName, out var serviceNameParts);
            var sum = 0;
            if (flag)
            {
                var queryResult = await _consulClient.Health.Service(serviceNameParts.Host, string.Empty, true, cancellationToken);
                foreach (var serviceEntry in queryResult.Response)
                {
                    var address = $"{serviceEntry.Service.Address}:{serviceEntry.Service.Port}";
                    var isEndpoint = ServiceNameParts.TryCreateEndPoint(address, out var endPoint);
                    if (isEndpoint)
                    {
                        ++sum;
                        var serviceEndPoint = ServiceEndPoint.Create(endPoint!);
                        serviceEndPoint.Features.Set<IServiceEndPointProvider>(this);
                        serviceEndPoint.Features.Set<IHostNameFeature>(this);
                        endPoints.EndPoints.Add(serviceEndPoint);
                        _logger.LogInformation($"ConsulServiceEndPointProvider Found Service {_serviceName}:{address}");
                    }
                }
            }

            if (sum == 0)
            {
                _logger.LogWarning($"No ConsulServiceEndPointProvider were found for service '{_serviceName}' ('{HostName}').");
            }
        }

        /// <inheritdoc/>
        public override string ToString() => Name;
    }

实现 IServiceEndPointProviderFactory:


internal class ConsulServiceEndPointProviderFactory(IConsulClient consulClient, ILogger<ConsulServiceEndPointProviderFactory> logger) : IServiceEndPointProviderFactory
    {
        private readonly IConsulClient _consulClient = consulClient;
        private readonly ILogger<ConsulServiceEndPointProviderFactory> _logger = logger;
        public bool TryCreateProvider(ServiceEndPointQuery query, [NotNullWhen(true)] out IServiceEndPointProvider? resolver)
        {
            resolver = new ConsulServiceEndPointProvider(query, _consulClient, _logger);
            return true;
        }
    }
internal class ConsulServiceEndPointProviderFactory(IConsulClient consulClient, ILogger<ConsulServiceEndPointProviderFactory> logger) : IServiceEndPointProviderFactory
    {
        private readonly IConsulClient _consulClient = consulClient;
        private readonly ILogger<ConsulServiceEndPointProviderFactory> _logger = logger;

        public bool TryCreateProvider(ServiceEndPointQuery query, [NotNullWhen(true)] out IServiceEndPointProvider? resolver)
        {
            resolver = new ConsulServiceEndPointProvider(query, _consulClient, _logger);
            return true;
        }
    }

internal class ConsulServiceEndPointProviderFactory(IConsulClient consulClient, ILogger<ConsulServiceEndPointProviderFactory> logger) : IServiceEndPointProviderFactory
    {
        private readonly IConsulClient _consulClient = consulClient;
        private readonly ILogger<ConsulServiceEndPointProviderFactory> _logger = logger;

        public bool TryCreateProvider(ServiceEndPointQuery query, [NotNullWhen(true)] out IServiceEndPointProvider? resolver)
        {
            resolver = new ConsulServiceEndPointProvider(query, _consulClient, _logger);
            return true;
        }
    }

接着扩展一下IServiceCollection


public static IServiceCollection AddConsulServiceEndpointProvider(this IServiceCollection services)
{
  services.AddServiceDiscoveryCore();
  services.AddSingleton<IServiceEndPointProviderFactory, ConsulServiceEndPointProviderFactory>();
  return services;
}
public static IServiceCollection AddConsulServiceEndpointProvider(this IServiceCollection services)
{
  services.AddServiceDiscoveryCore();
  services.AddSingleton<IServiceEndPointProviderFactory, ConsulServiceEndPointProviderFactory>();
  return services;
}

public static IServiceCollection AddConsulServiceEndpointProvider(this IServiceCollection services)
{
	services.AddServiceDiscoveryCore();
	services.AddSingleton<IServiceEndPointProviderFactory, ConsulServiceEndPointProviderFactory>();
	return services;
}

最后添加一行代码 :


// 使用Microsoft.Extensions.ServiceDiscovery实现负载均衡
builder.Services.AddServiceDiscovery()
    .AddConfigurationServiceEndPointResolver() //config
    .AddConsulServiceEndpointProvider(); //consul
// 使用Microsoft.Extensions.ServiceDiscovery实现负载均衡
builder.Services.AddServiceDiscovery()
    .AddConfigurationServiceEndPointResolver() //config
    .AddConsulServiceEndpointProvider(); //consul
// 使用Microsoft.Extensions.ServiceDiscovery实现负载均衡
builder.Services.AddServiceDiscovery()
    .AddConfigurationServiceEndPointResolver() //config
    .AddConsulServiceEndpointProvider(); //consul

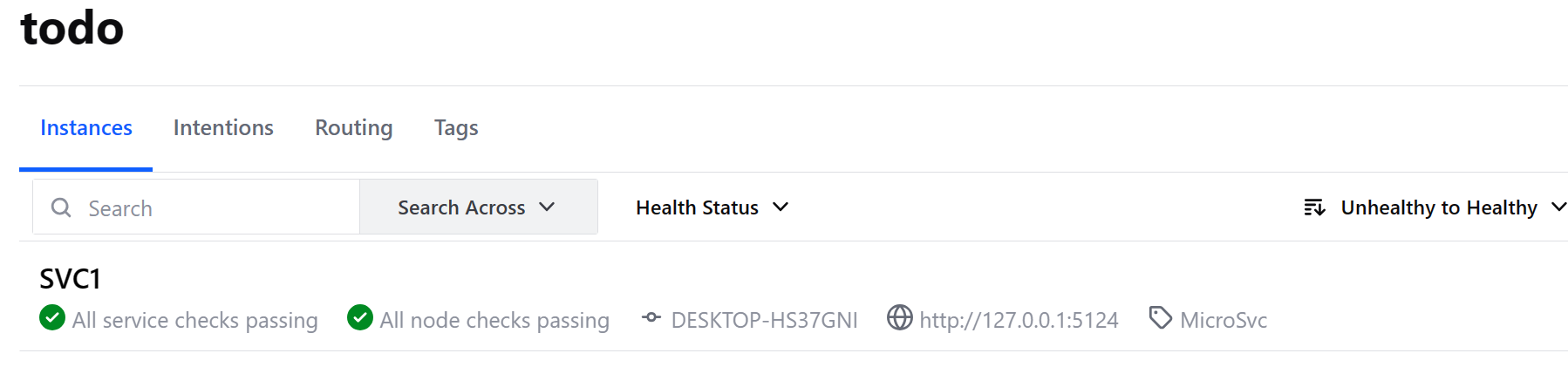

下面是Consul中注册完成的服务:

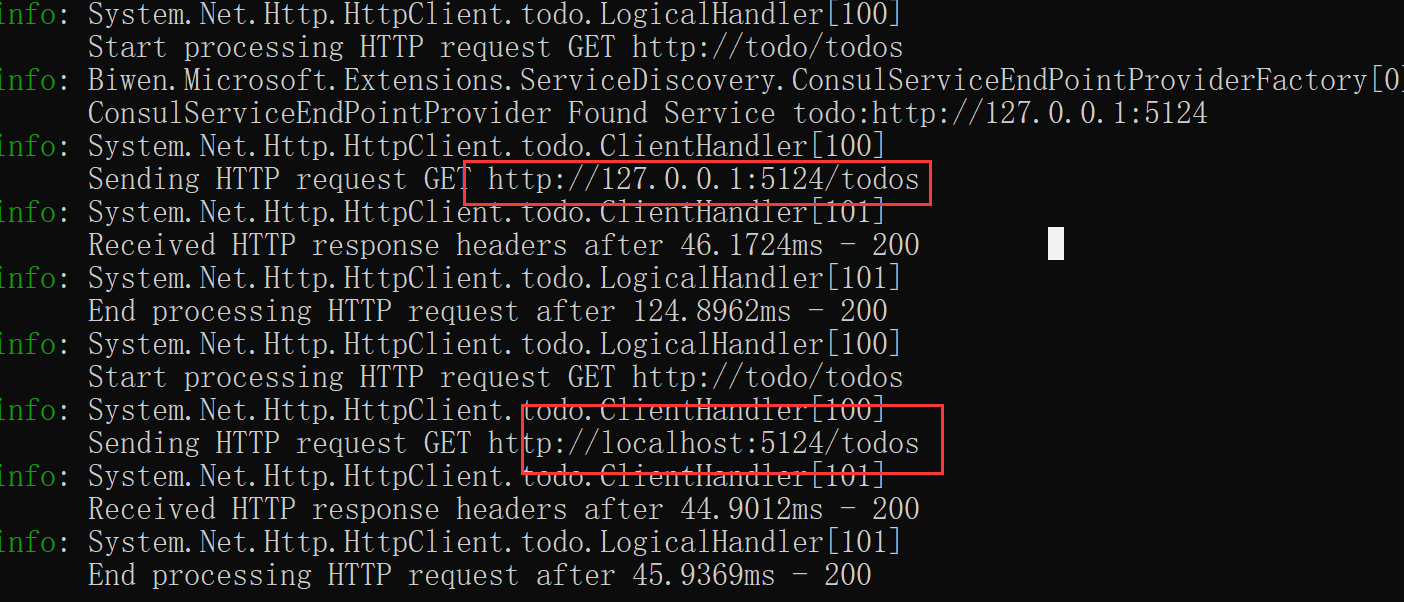

然后我们请求 ./test 调用服务,观察调试日志,成功了!

完整的代码:
https://github.com/vipwan/Biwen.Microsoft.Extensions.ServiceDiscovery.Consul

当然你也可以直接使用nuget引用 Biwen.Microsoft.Extensions.ServiceDiscovery.Consul 我已经发布到了nuget上 , 最后因为Aspire还在不停的迭代所以Biwen.Microsoft.Extensions.ServiceDiscovery.Consul后面还会存在一些变化, 前面的几个早期版本我都做了适配以最新的为准

展开阅读全文

本站所有资源来自于网络，仅供学习与参考，请勿用于商业用途，否则产生的一切后果将由您(转载者)自己承担！
如有侵犯您的版权，请及时联系3500663466#qq.com(#换@)，我们将第一时间删除本站数据。

THE END
