RAID处理

1，查看Adapter

/opt/MegaRAID/MegaCli/MegaCli64 -cfgdsply -aALL

指定硬盘做raid

查看新加盘的Enclosure ID 和Slot号

/opt/MegaRAID/MegaCli/MegaCli64 -pdlist -aall | egrep "Raw|Enclosure|Slot|Firmware"

Slot Number: 3
Enclosure position: 0
Raw Size: 558.911 GB [0x45dd2fb0 Sectors]
Firmware state: Online, Spun Up
Device Firmware Level: AD02
Enclosure Device ID: 10
Slot Number: 4
Enclosure position: 0
Raw Size: 447.130 GB [0x37e436b0 Sectors]
Firmware state: Online, Spun Up
Device Firmware Level: 0100

/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0(raid级别) [10(Enclosure Device ID):4(Slot Number)] WB Direct -a0(Enclosure position)


raid使用
https://www.cnblogs.com/zhangxinglong/p/5983425.html
https://idc.wanyunshuju.com/cym/646.html
https://github.com/XANi/toolbox/blob/master/doc/RAID.md



# /opt/MegaRAID/MegaCli/MegaCli64  -LDInfo -Lall -aALL

OSSpecificInitialize: Failed to load libsysfs.so.2.0.2 Please ensure that libsfs is present in the system.
The dependent library libsysfs.so.2.0.1 not available. Please contact LSI for distribution of the package

Adapter 0 -- Virtual Drive Information:
Virtual Drive: 0 (Target Id: 0)
Name                :
RAID Level          : Primary-0, Secondary-0, RAID Level Qualifier-0
Size                : 557.861 GB
State               : Optimal
Strip Size          : 128 KB
Number Of Drives    : 1
Span Depth          : 1
Default Cache Policy: WriteBack, ReadAhead, Direct, Write Cache OK if Bad BBU
Current Cache Policy: WriteBack, ReadAhead, Direct, Write Cache OK if Bad BBU
Access Policy       : Read/Write
Disk Cache Policy   : Disk's Default
Encryption Type     : None



查看raid和磁盘关系

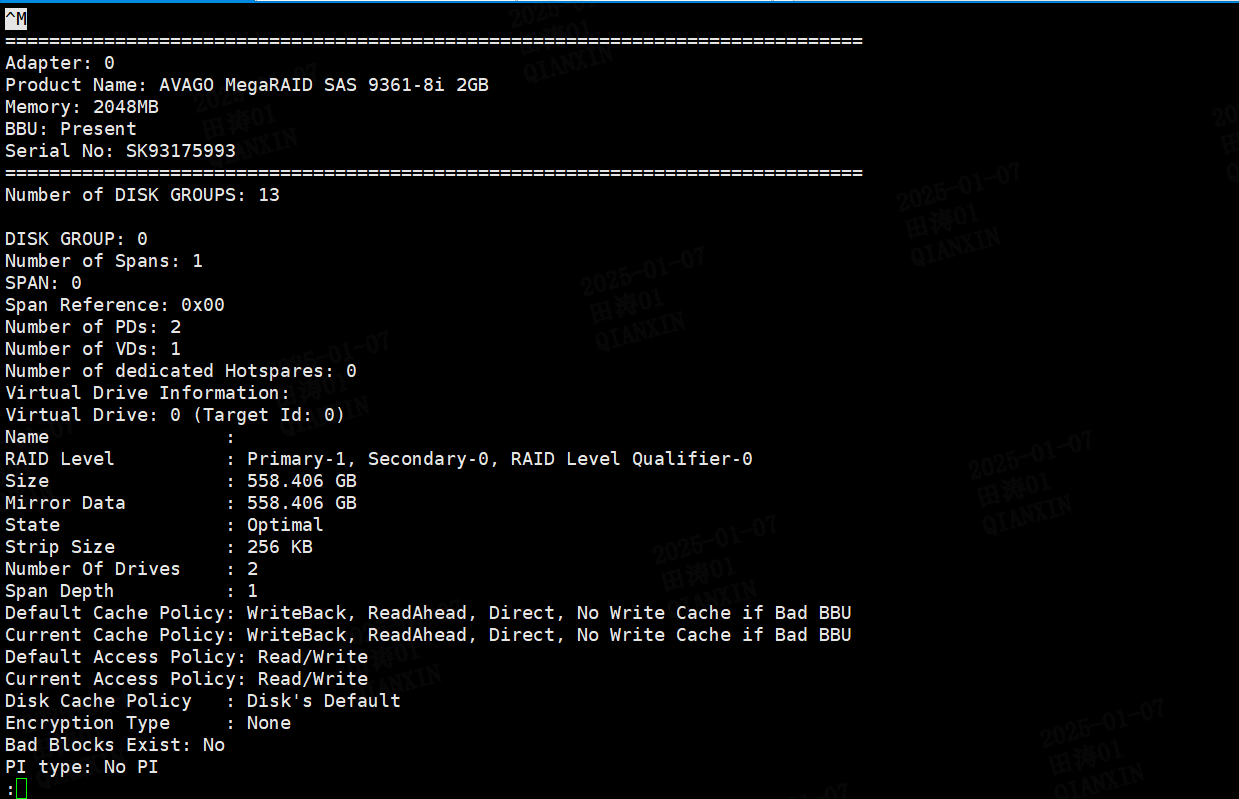

/opt/MegaRAID/MegaCli/MegaCli64  -cfgdsply -aALL
/opt/MegaRAID/MegaCli/MegaCli64  -LdPDList -aALL

/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0(raid级别) [10(Enclosure Device ID):4(Slot Number)] WB Direct -a0(Enclosure position)

/opt/MegaRAID/MegaCli/MegaCli64 -pdlist -aall | egrep "Enclosure Device ID|Slot Number|Raw Size|Enclosure position"
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:1] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:2] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:3] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:4] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:5] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:6] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:7] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:8] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:9] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:10] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:11] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -LDInfo -Lall -aALL

https://blog.51cto.com/jiayimeng/2650619
/opt/MegaRAID/MegaCli/MegaCli64  -cfglddel  -L1 -a0

a0：表示raid卡信息中的Adapter #0适配器编号
L1：表示Virtual Drive 1虚拟设备编号
/opt/MegaRAID/MegaCli/MegaCli64  -LDInfo -Lall -aALL






MegaCli  -CfgLdAdd -r5 [8:0, 8:1, 8:3, 8:4, 8:5, 8:6, 8:7, 8:8, 8:9, 8:10, 8:11] -a0

/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd --r5 [8:0, 8:1, 8:3, 8:4, 8:5, 8:6, 8:7, 8:8, 8:9] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:10] WB Direct -a0
/opt/MegaRAID/MegaCli/MegaCli64 -cfgldadd -r0 [8:11] WB Direct -a0



RAID卡知識
https://www.cnblogs.com/dexter-wang/articles/12235881.html
https://www.cnblogs.com/dexter-wang/articles/12235881.html
https://javaforall.cn/124772.html
https://www.cnblogs.com/kxln/p/15790533.html
http://t.zoukankan.com/lixinliang-p-11196622.html
http://t.zoukankan.com/easonscx-p-10438053.html
https://www.cnblogs.com/xingxiz/p/10411248.html
https://github.com/XANi/toolbox/blob/master/doc/RAID.md
https://www.jianshu.com/p/551ce3a92061
https://www.shnne.com/post/344.html

1，确定坏盘






2，找到raid和targetid

相关参考

./MegaCli64 -CfgDsply -a0

./storcli64 -adpalilog -aALL >log


MegaCli  -CfgLdAdd -r5 [8:0, 8:1, 8:2,8:3, 8:4, 8:5, 8:6, 8:7, 8:8, 8:9, 8:10, 8:11] -a0

来源链接：https://www.cnblogs.com/tiantao36/p/18657579
